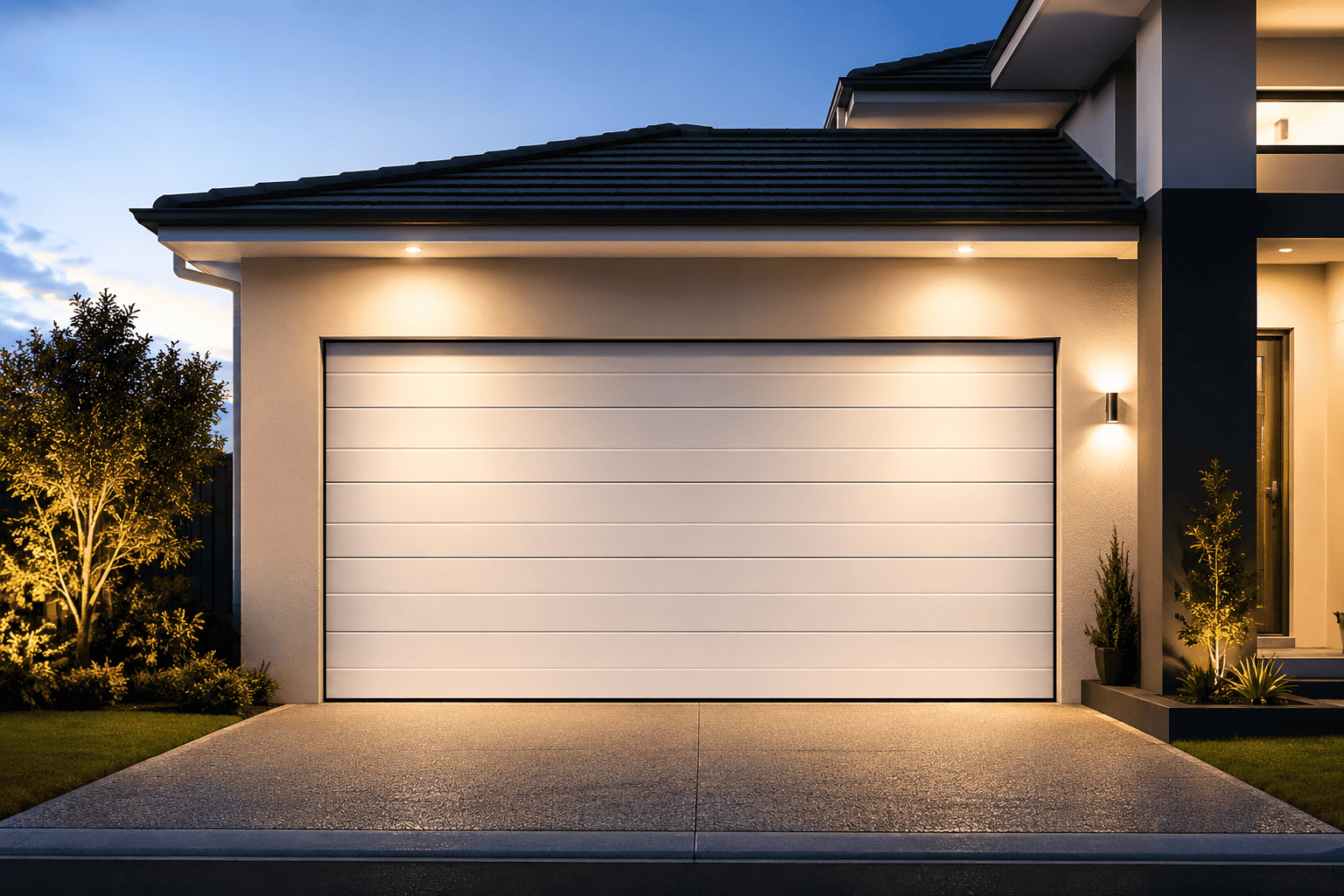

Residential Sectional Garage Doors

SEPPES insulated sectional garage doors are designed for modern homes, providing superior thermal insulation, anti-theft protection, safe operation, and quiet performance. Perfect for villas, private garages, and residential properties.

✔ High Thermal Insulation

✔ Anti-Theft Protection

✔Multiple Safety Devices

✔ Quiet & Smooth Operation

Why Homeowners Choose SEPPES Garage Doors

Thermal Insulation

Poorly insulated doors increase heating and cooling costs.

Anti-Theft Security

Temperature differences create moisture and humidity problems.

Safety Protection

Sensitive goods require stable indoor climate control.

Quiet Operation

Frequent door operation increases HVAC energy consumption.

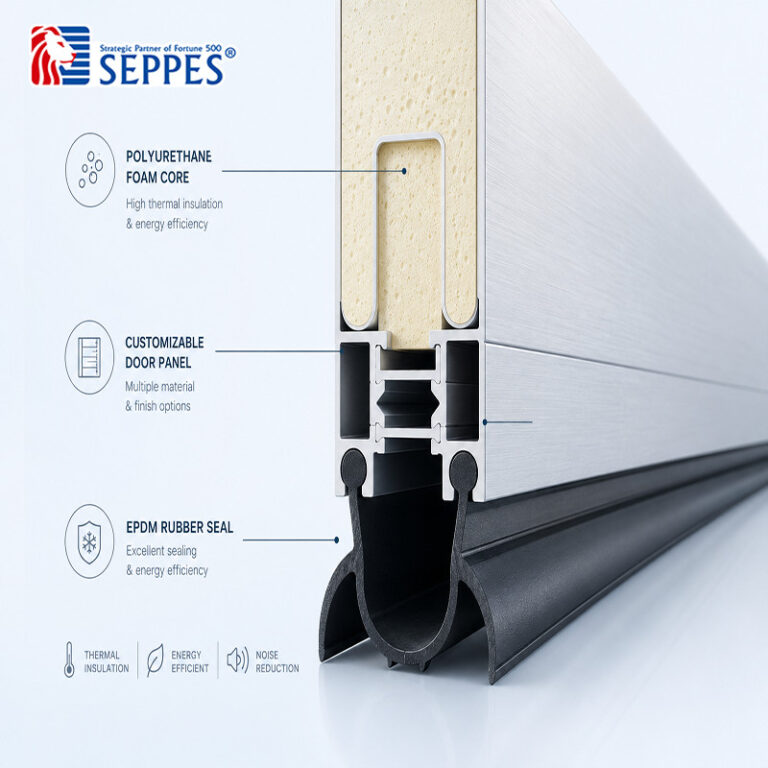

Built for Comfort & Long-Term Durability

48kg/m³ PU Foam Core

High-density polyurethane insulation improves thermal performance and energy efficiency.

Double-Layer Steel Panels

Durable galvanized steel sheets with orange peel embossed finish.

Full EPDM Sealing

Top, side, and bottom rubber seals block dust, rain, and cold air infiltration.

Technical Specifications

Component	Standard Specification	Optional Configuration
Panel Material	0.42mm color steel sheet + PU foam filling	0.5mm steel / aluminum / stainless steel
PU Foam Density	48kg/m³	High-density insulation upgrade
Panel Thickness	40mm / 50mm	60mm / 80mm
Surface Finish	Orange peel embossed	Mirror finish
Panel Color	White	Custom RAL colors
Track Material	2.0mm galvanized steel	—
Spring Material	60Si2Mn	82B spring steel
Spring Life	Approx. 30,000 cycles	50,000 cycles available
Motor System	German FROG PUPIL frequency motor	Smart control system
Opening Method	Push button + remote control	APP / smart home integration
Wind Resistance	Level 11	Reinforced structure
Emergency Device	Manual chain hoist	Battery backup
Sealing System	Full EPDM rubber sealing	Thermal insulation upgrade

Standard Safety Protection Devices

Torsion Spring Break Protection

Energy Saving

Wire Rope Anti-Fall Device

Insulated Panel Thickness

Track End Buffer Device

Spring Life Cycles

Safety Bottom Edge

Wind Resistance Level

Applications

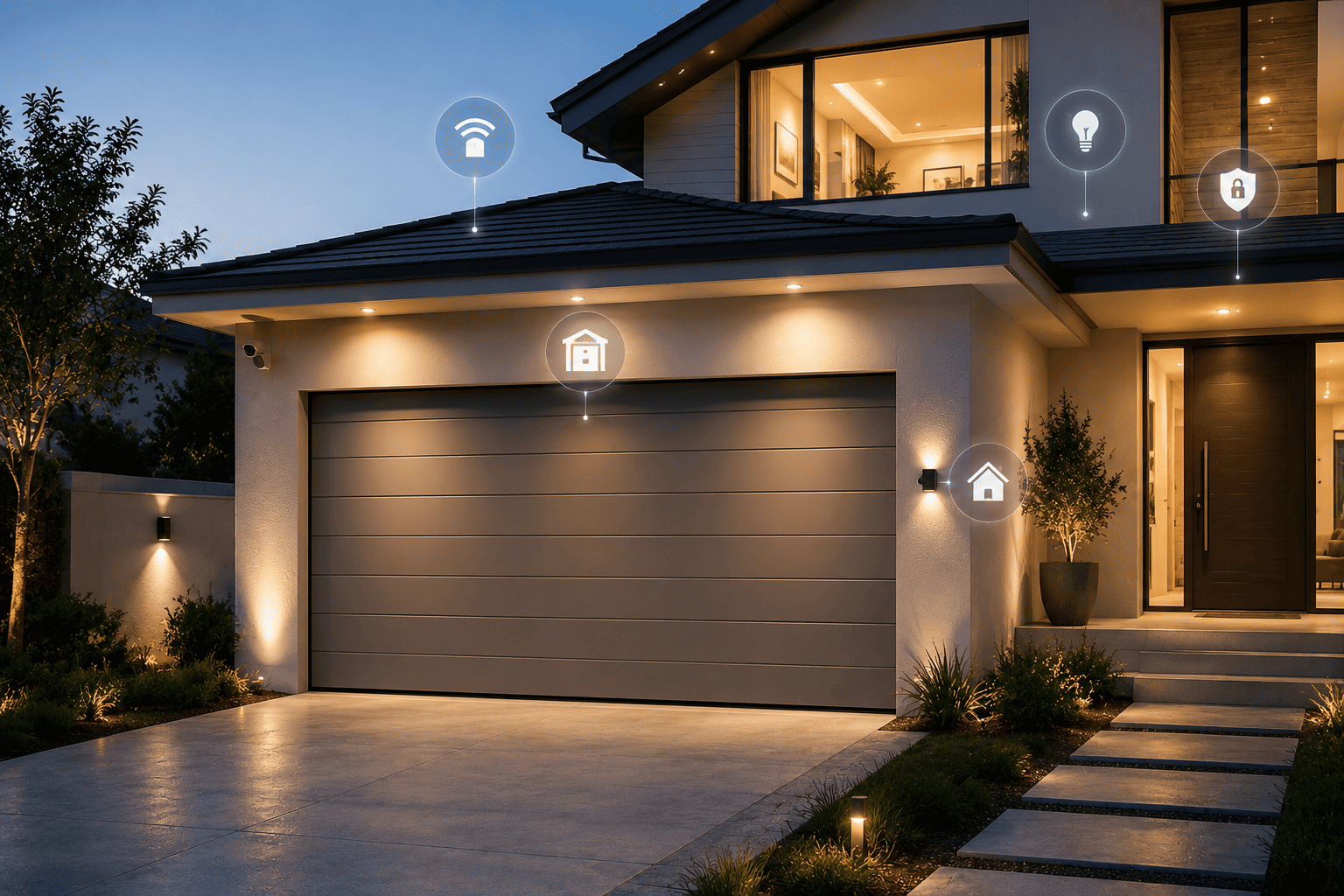

Smart Homes

Designed with multiple expansion interfaces for smart interlocking, automatic opening, and remote control integration.

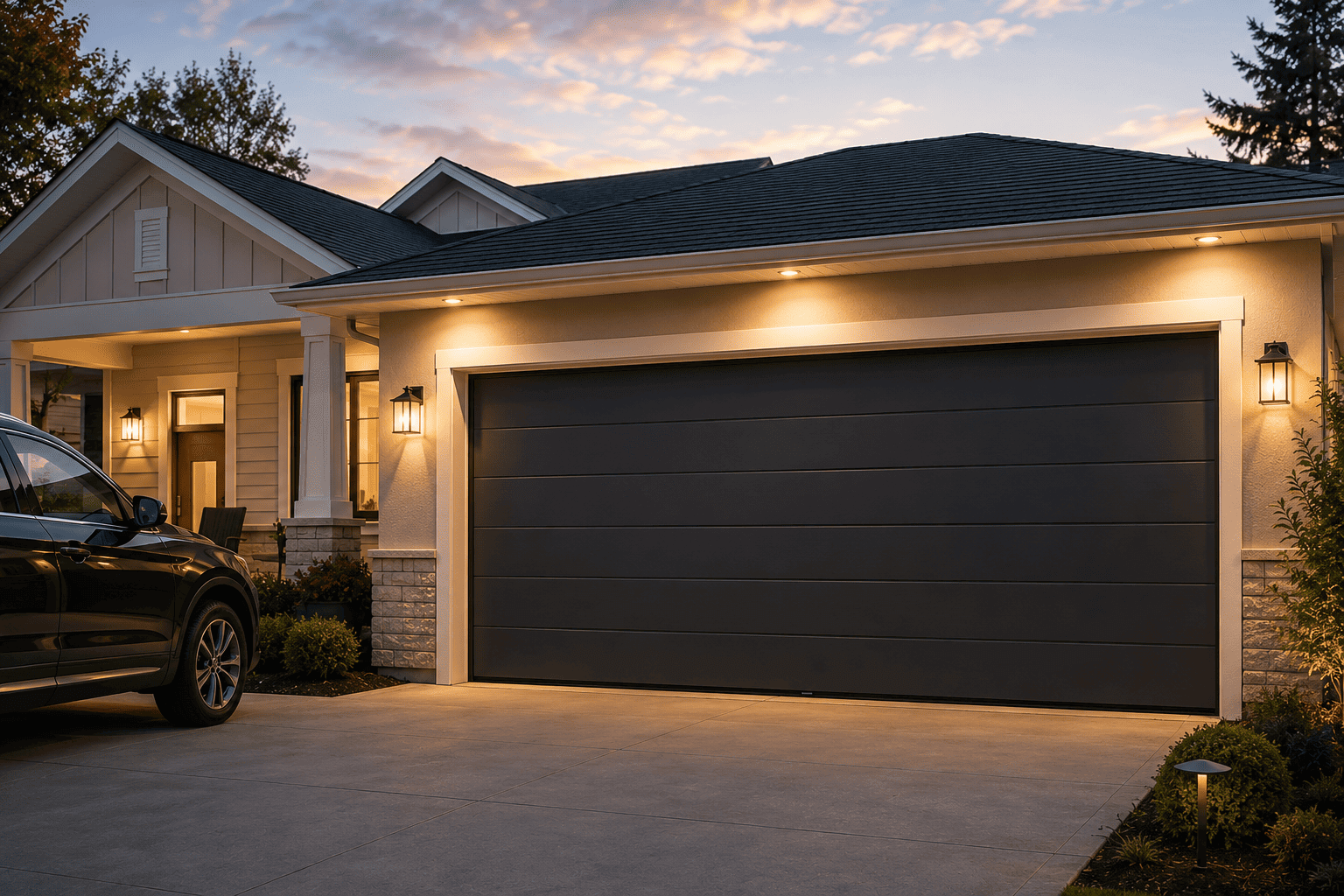

Private Home Garages

Secure and energy-efficient garage doors for modern homes.

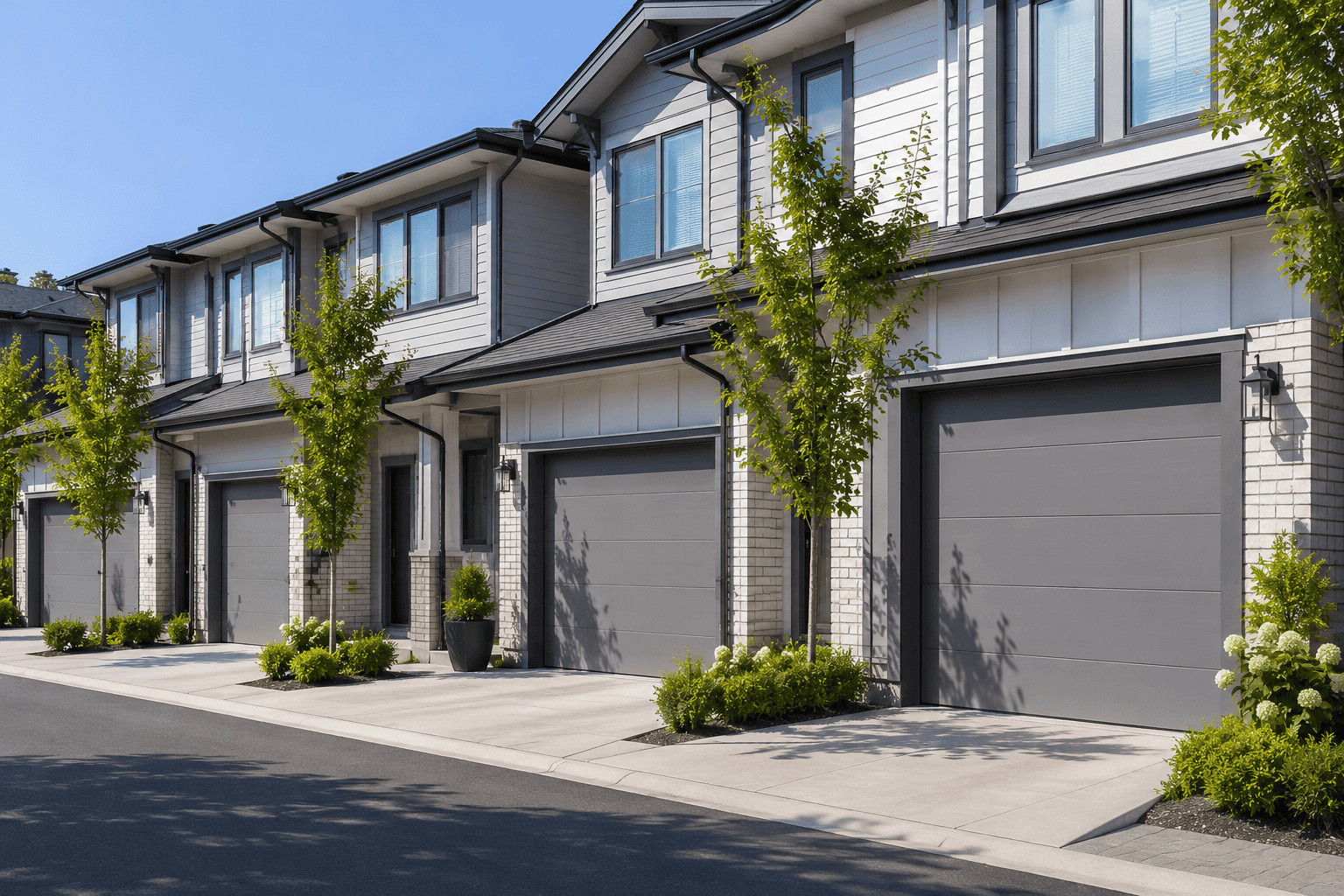

Townhouses

Insulated garage doors for townhouses with quiet operation and modern design.

Optional Configurations

Vision Windows

Available with acrylic windows or tempered glass panels.

Custom Colors

Customized RAL colors to match residential exterior design.

Smart Control

Remote Control

Mobile APP

Smart Home Integration

Automatic Lighting

Why Choose SEPPES

15 Years Experience

Professional garage door manufacturing experience.

Advanced Safety System

Multiple standard safety protection devices included.

Custom Design Support

Customized sizes, colors, and configurations available.

Global Export Experience

Trusted by customers in more than 70 countries.

Common Questions

Are sectional garage doors insulated?

Yes. SEPPES garage doors use polyurethane foam insulated panels for thermal efficiency and energy saving.

Are safety devices included as standard?

Yes. Spring break protection, anti-fall device, track buffer, and safety bottom edge are standard.

Can I customize the garage door color?

Yes. Custom RAL colors are available to match your home exterior.

How long does the spring last?

Standard spring life is approximately 30,000 operating cycles.

Can the garage door be connected to smart home systems?

Yes. APP control and smart home integration are available.

Why Choose SEPPES

We have authentic and authoritative certificates

We have exported to more than 65 countries and regions. Our powerful service internet and install team helps us build relationships with customers who come from European, the Middle East, South America, Southand East Asia.
