Ice cream and dairy freezer facilities depend on stable temperature control from production and freezing through cold storage and refrigerated distribution. Large warehouse openings can become weak points in this cold chain, especially when doors open frequently or refrigerated trucks are loading at the dock.
An insulated overhead door can provide an effective thermal barrier when closed, but door insulation alone does not determine the performance of a freezer entrance. Opening speed, perimeter sealing, forklift frequency, loading dock design and truck-to-building gaps should all be considered together.
This guide explains how insulated sectional overhead doors, high speed freezer doors, dock shelters and hydraulic dock levelers can be configured for ice cream and frozen dairy facilities.
For a complete overview of refrigerated warehouse access systems, visit the SEPPES cold storage doors and loading dock equipment solution .
Why ice cream and dairy freezers need better door insulation
A freezer warehouse normally operates with a significant temperature difference between the refrigerated interior and surrounding production, staging or outdoor environments. Every time a large doorway opens, cold indoor air and warmer outside air can interact.
For general frozen-food storage, the U.S. Department of Agriculture recommends maintaining freezer conditions at approximately 0°F (-17.8°C) or below. Actual commercial ice cream storage temperatures can be lower and should always follow the product manufacturer's and facility operator's requirements.
You can review the USDA reference here: USDA freezing and food safety guidance .
For an industrial door opening, maintaining the cold environment involves insulated panels, effective perimeter sealing, short door-open time and correct loading bay configuration.

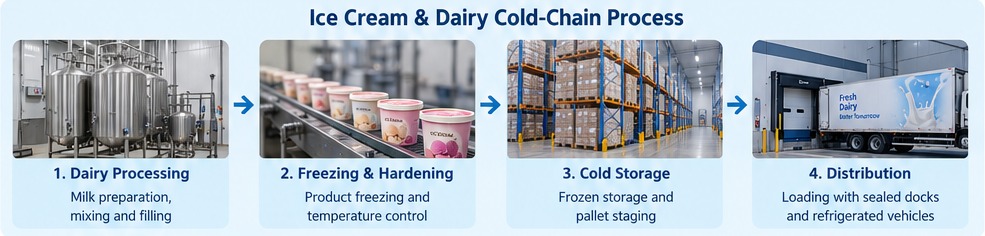

Follow the dairy cold chain from production to distribution
One of the most effective ways to select freezer doors is to look at the complete product flow instead of specifying the same type of door for every opening.
A typical frozen dairy facility may move products through dairy processing, freezing or hardening, freezer storage, pallet staging and finally refrigerated truck loading. Each position has a different traffic pattern and may require a different access solution.

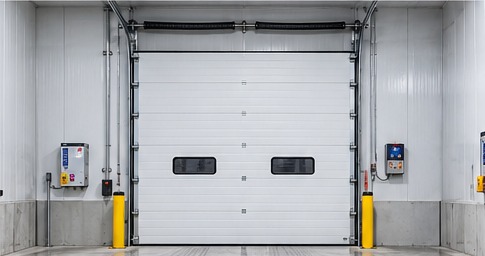

Insulated overhead doors for dairy freezer warehouses
For exterior freezer entrances and refrigerated loading bays, an insulated sectional overhead door is often a practical choice because it combines thermal insulation, industrial durability and vertical opening.
SEPPES insulated sectional overhead doors use polyurethane-filled steel sandwich panels. Available configurations include 40 mm and 50 mm panels with approximately 48 kg/m³ PU foam core and EPDM perimeter sealing.
These doors can be considered for ice cream freezer warehouse entrances, frozen dairy storage rooms, refrigerated distribution facilities and loading bay openings.
40 mm or 50 mm insulated overhead door panels?
Buyers often ask whether a 40 mm or 50 mm sectional door panel should be used for a freezer warehouse. Panel thickness is important, but it should not be evaluated by itself.
| Selection factor | What to check |
|---|---|
| Freezer temperature | Confirm the actual operating temperature inside the dairy freezer. |
| Temperature difference | Check whether the opposite side is another cold room, an ambient warehouse or outdoors. |
| Door dimensions | Larger openings require consideration of panel strength and track configuration. |
| Opening frequency | A low-frequency exterior opening has different requirements from a frequently used forklift passage. |
| Local climate | Outdoor heat, humidity, wind and winter temperatures affect operating conditions. |
| Perimeter sealing | Top, side and bottom seals contribute to the overall thermal performance of the opening. |
High speed freezer doors for frequent forklift traffic
A sectional overhead door works well where insulation and structural closure are priorities, but not every opening inside a frozen dairy facility needs the same type of door.
If forklifts repeatedly pass between production, staging and freezer areas during a shift, opening time becomes increasingly important. In these positions, an 隔热高速门 can reduce the time that the opening remains fully exposed.
High speed freezer doors can be used between production areas, packaging rooms, cold rooms and freezer storage where frequent traffic needs to move efficiently.
Where should each type of freezer door be used?
| Location | Suggested door | Main requirement |
|---|---|---|
| Exterior freezer warehouse entrance | Insulated sectional overhead door | Thermal insulation, sealing and structural protection |
| Refrigerated loading bay | Insulated overhead door | Integration with dock shelter and dock leveler |
| Production to freezer route | 隔热高速门 | Frequent traffic and shorter opening time |
| Cold storage to staging area | High speed cold storage door | Fast forklift access between temperature zones |
| Low-frequency storage opening | 保温分段门 | Reliable closed-door thermal barrier |
Ice cream production and freezer access
Ice cream production can involve continuous movement between processing, filling, hardening, cold storage and dispatch areas. Doors along this route should therefore match the way materials actually move through the facility.
A high-frequency internal passage may benefit more from rapid opening and closing, while a large exterior freezer entrance may prioritize an insulated sectional structure and perimeter sealing.
Loading dock sealing for frozen dairy distribution
Even a well-insulated overhead door cannot seal the space around a refrigerated truck by itself. Once the vehicle is positioned at the loading dock, gaps may remain around the top and sides of the trailer.
Warm air, humidity, wind, rain and dust can enter through the truck-to-building gap. This makes loading dock sealing particularly important for frozen dairy distribution.
一个 充气式码头遮蔽物 uses inflatable side and top cushions around a parked trailer to provide a closer seal between the truck and building.
Dock seal or dock shelter: which should you choose?
The choice between dock seals and shelters depends largely on the truck fleet and required sealing performance.
| Loading bay system | 特性概述 | Typical use |
|---|---|---|
| Foam dock seal | Foam pads compress against the vehicle body. | Loading docks handling relatively consistent truck dimensions. |
| 机械船坞防护罩 | Flexible curtains surround the rear of the vehicle. | Facilities serving a wider range of truck sizes. |
| 充气式码头遮蔽物 | Powered side and top airbags inflate around the parked trailer. | Cold-chain loading bays requiring tighter truck-to-building sealing. |
Before selecting a dock shelter, measure the minimum and maximum truck width and height, dock platform height, bumper projection and building opening.
Hydraulic dock levelers for refrigerated trucks
Another important consideration is the height difference between the warehouse platform and the refrigerated truck bed. A 液压码头平整机 bridges this difference so forklifts can move pallets between the freezer warehouse and trailer.
Dock leveler capacity should not be selected from cargo weight alone. Forklift weight, cargo weight, truck-bed height range, loading frequency, platform dimensions and dynamic loads should all be reviewed.
Plan the insulated door and loading dock as one system
A loading bay should not be designed by selecting the overhead door, dock shelter and leveler separately. Each component interacts with the same opening, vehicle position and forklift route.
A typical frozen dairy loading bay may follow this arrangement:
Freezer warehouse → insulated overhead door → dock shelter → hydraulic dock leveler → refrigerated truck
The overall design should consider clear door dimensions, available headroom, sectional door track position, dock leveler pit, dock height, bumper projection, truck position and forklift route.
You can review the complete SEPPES loading dock equipment range .
Temperature-controlled storage for dairy products
Different dairy products may require different temperature and storage conditions. The access system therefore needs to be designed around the actual product and operating conditions rather than assuming every dairy warehouse works at the same temperature.
Door selection should take into account freezer temperature, adjacent-room temperature, opening frequency, humidity and loading conditions.
How to reduce condensation and frost around freezer doors
When warm humid air reaches a cold freezer opening, moisture can condense on cold surfaces and may freeze when temperatures are sufficiently low.
- Use insulated panels on large exterior freezer openings.
- Maintain effective top, side and bottom seals.
- Use faster doors on high-frequency internal routes.
- Reduce unnecessary door-open time.
- Seal refrigerated truck gaps with a suitable dock shelter or seal.
- Check damaged weather seals regularly.
- Coordinate forklift activation to avoid unnecessary door cycles.
- Maintain safe floor conditions around freezer entrances.
Loading dock safety in dairy distribution facilities
Door insulation and energy efficiency should not be considered separately from loading dock safety. Forklifts moving between warehouses and refrigerated trailers operate close to dock edges and transition surfaces.
For general loading dock safety information, see: OSHA loading dock and forklift safety guidance .
Depending on local regulations and project requirements, loading bays may also incorporate dock bumpers, wheel chocks, vehicle restraints, warning lights and other safety controls.
Example dairy freezer door and loading bay configuration
The following example shows how different products could be assigned across a frozen dairy facility. It is a planning example rather than a fixed engineering specification.
| Facility area | Possible configuration | Purpose |
|---|---|---|
| Production to freezer storage | 隔热高速门 | Frequent internal traffic with shorter opening time |
| Main freezer warehouse entrance | Insulated overhead door | Thermal separation and industrial closure |
| Cold warehouse exterior opening | Industrial sectional overhead door | Insulation, weather protection and security |
| Refrigerated truck loading bay | Insulated overhead door + inflatable dock shelter + hydraulic dock leveler | Thermal separation, truck sealing and forklift transfer |
| Vehicle safety area | Dock bumper + vehicle restraint or wheel chocks | Support controlled loading operations |
What information is needed for an insulated overhead door quote?
For a more accurate project recommendation, provide the door opening width and height, quantity, freezer operating temperature, temperature on the opposite side, opening frequency, forklift traffic, available headroom and side room.
For loading bay projects, also provide the platform height, truck-bed height range, truck size range, forklift and cargo weight, dock leveler pit dimensions and project drawings where available.
Frequently asked questions
What type of insulated overhead door is suitable for an ice cream freezer?
An insulated sectional overhead door is commonly used for exterior freezer entrances and refrigerated loading bays where thermal insulation, perimeter sealing and structural closure are important. The exact specification should be based on opening size, temperature difference, traffic frequency and installation conditions.
Should I choose a 40 mm or 50 mm insulated sectional door?
The choice should consider operating temperature, opposite-side temperature, door dimensions, climate, opening frequency and project thermal requirements.
When should a dairy freezer use a high speed door?
A high speed insulated door is useful for frequently accessed internal routes where forklifts repeatedly move between temperature-controlled zones and reducing door-open time is important.
Why does a refrigerated dairy loading bay need a dock shelter?
A dock shelter reduces the open space around the rear of a parked refrigerated truck, helping limit exposure to wind, rain, dust and outside air during loading.
What is the difference between a dock seal and an inflatable dock shelter?
A dock seal normally uses compressible pads against the truck body, while an inflatable shelter uses powered side and top cushions. Selection depends on the truck range, loading bay dimensions and sealing requirements.
How should a hydraulic dock leveler capacity be selected?
Capacity should consider forklift weight, cargo weight, dynamic loads, crossing frequency, truck height range and manufacturer engineering criteria.
