Daily personnel entry
The integrated wicket door supports quick pedestrian movement without opening the whole industrial sectional door.
Sectional Door / Wicket Door Access
Industrial Sectional Door with Wicket Door for Safer Pedestrian Access
An industrial sectional door with wicket door gives warehouse teams a practical pedestrian access route without opening the full overhead door every time. SEPPES designs sectional doors with integrated wicket doors for factories, logistics buildings, service bays, and commercial facilities that need both vehicle access and controlled personnel movement.
门类型
分节式高架门
Access Type
Built-in pedestrian door
配置
Custom industrial project
主要优势
Pedestrian access should not interrupt full-door operation.
Reduced air exchange
Using the pass door for people helps reduce unnecessary opening time in warehouses, workshops, and temperature-sensitive zones.
Clean overhead layout
The sectional overhead door still lifts upward along tracks, keeping the main doorway available for vehicles and large goods.
Project-based safety
SEPPES can configure interlock logic, thresholds, windows, seals, and safety devices according to actual site use.
Product Design

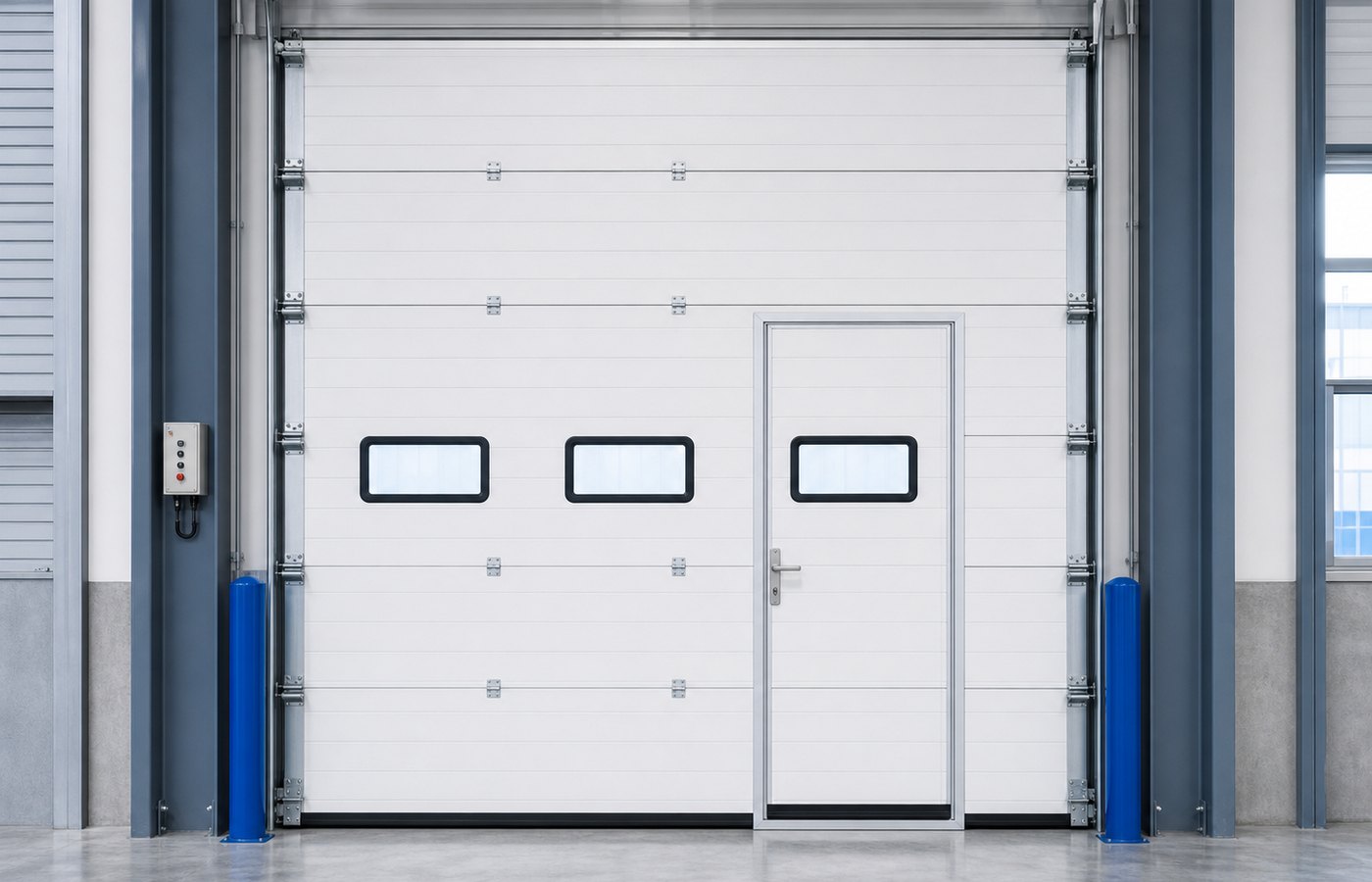

Sectional overhead door with pass door for mixed vehicle and pedestrian traffic.
For buyers comparing an overhead door with pedestrian door, an overhead garage door with pedestrian door, or a sectional overhead door with pass door, the main decision points are opening size, door panel structure, wicket door position, threshold height, window layout, and how the door will be used during daily operations. An industrial sectional door with wicket door should be specified by a manufacturer that understands both industrial door movement and pedestrian safety.
- Integrated wicket door for staff access and maintenance routes
- PU insulated panels for stable indoor working conditions
- Optional windows for visual awareness around the doorway
- Manual chain or motorized control according to project frequency
Not sure where to place the wicket door?
Send your opening size and pedestrian route for a quick configuration check.
Ask SEPPES
Industrial Sectional Door with Wicket Door Specifications
Reference configuration for engineering discussion.
Final specifications for an industrial sectional door with wicket door depend on building opening, pedestrian route, panel size, operation frequency, safety requirements, and local installation conditions.
产品类型
Industrial sectional door with wicket door
Door Panel
PU insulated steel sectional panel
Pass Door
Integrated pedestrian wicket door
Opening Size
Customizable by project drawing
Window Option
Rectangular vision windows or customized
Threshold
Low-threshold option according to site needs
运行
Manual chain or motorized control
Safety Options
Wicket-door interlock, spring protection, cable protection, safety bottom edge
Need to confirm whether a wicket door fits your opening?
Send the clear opening width, height, side room, headroom, and expected pedestrian route for an engineering check.
Request Drawing Review

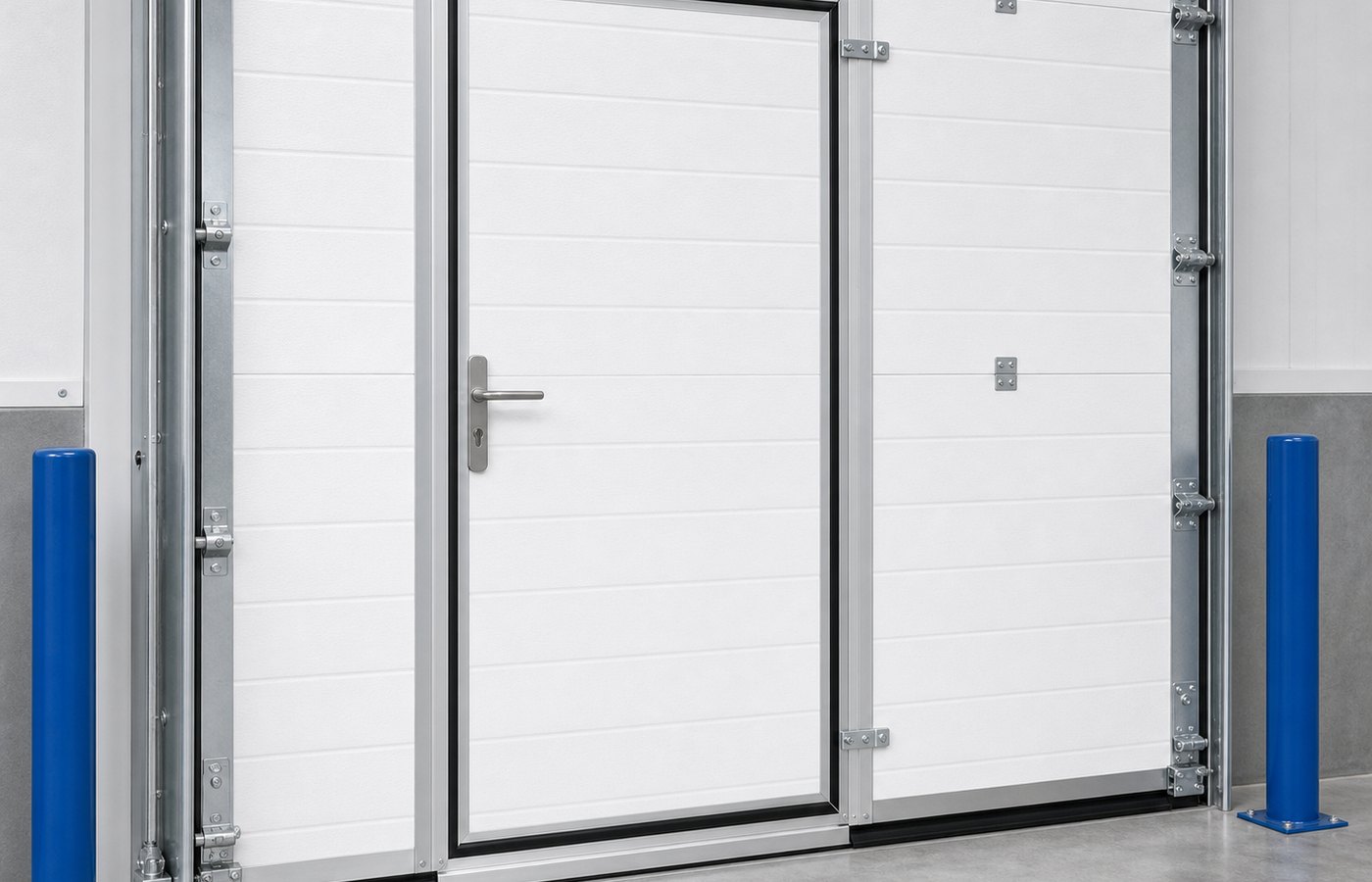

Wicket Door Detail
Low-threshold pedestrian door design for controlled access.
A sectional garage door with wicket door is useful when staff, inspectors, or maintenance teams need to enter the building without cycling the full overhead door. The pedestrian door should be planned with a suitable threshold, sealing profile, handle position, window arrangement, and interlock system so the main sectional door operates safely. For procurement teams searching for sectional garage door with pedestrian access, SEPPES can review the traffic route before confirming production details.
- Pass door position selected according to traffic route and opening width
- Sealing around the wicket frame to reduce dust, wind, and air exchange
- Optional pedestrian window placement for safer visibility
- Interlock function to prevent full-door operation when the wicket door is open

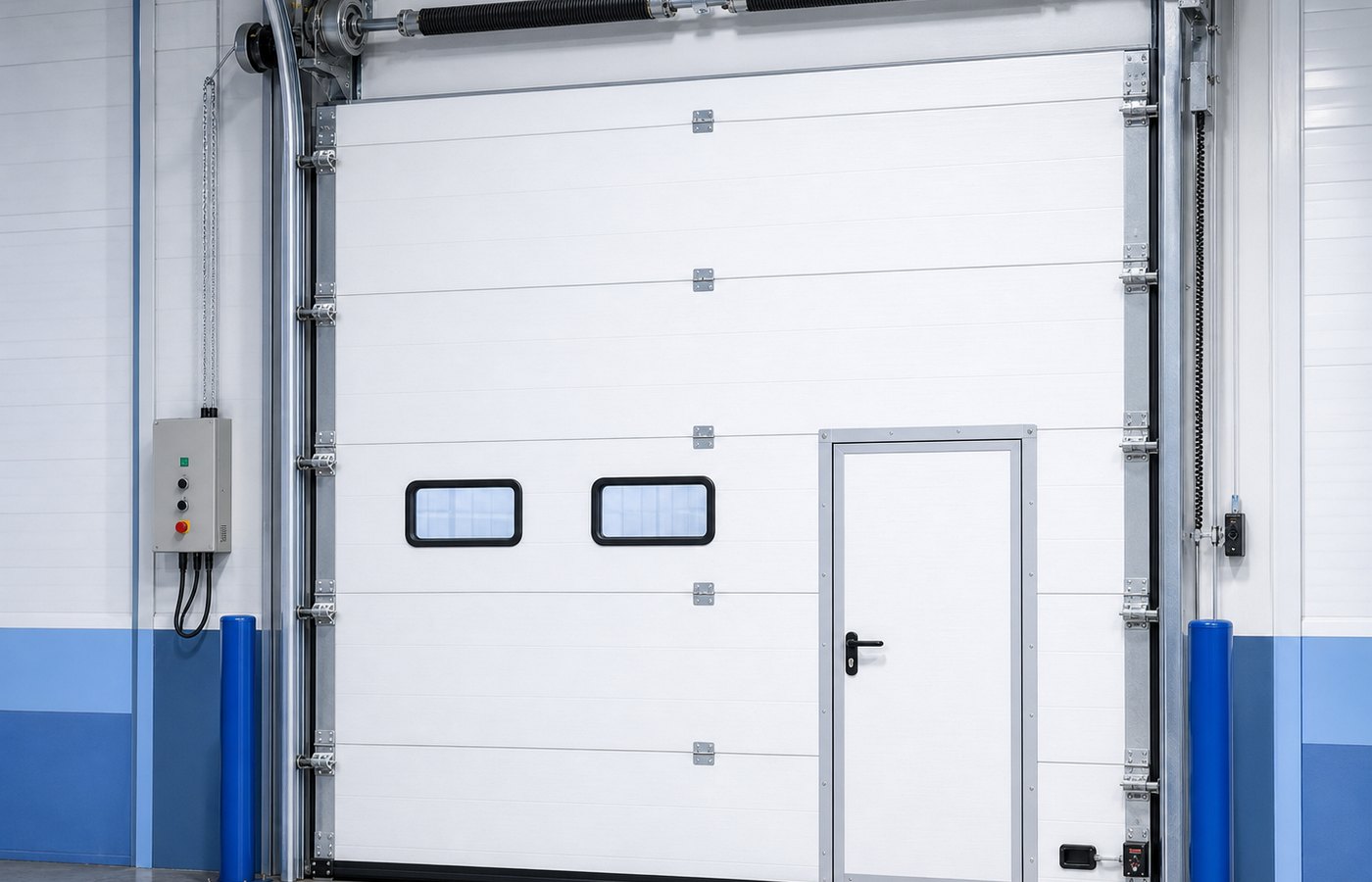

安全功能
Plan safety logic before ordering an overhead door with pedestrian door.
A pass door changes how the sectional door should be operated. For industrial use, the pedestrian door must be coordinated with the overhead door control system, spring protection, cable protection, and optional safety bottom edge to help reduce operational risk.
- Wicket-door interlock for safer motorized operation
- Spring break protection and cable anti-fall protection
- Optional safety bottom edge for obstacle detection
- Emergency release and manual control where required

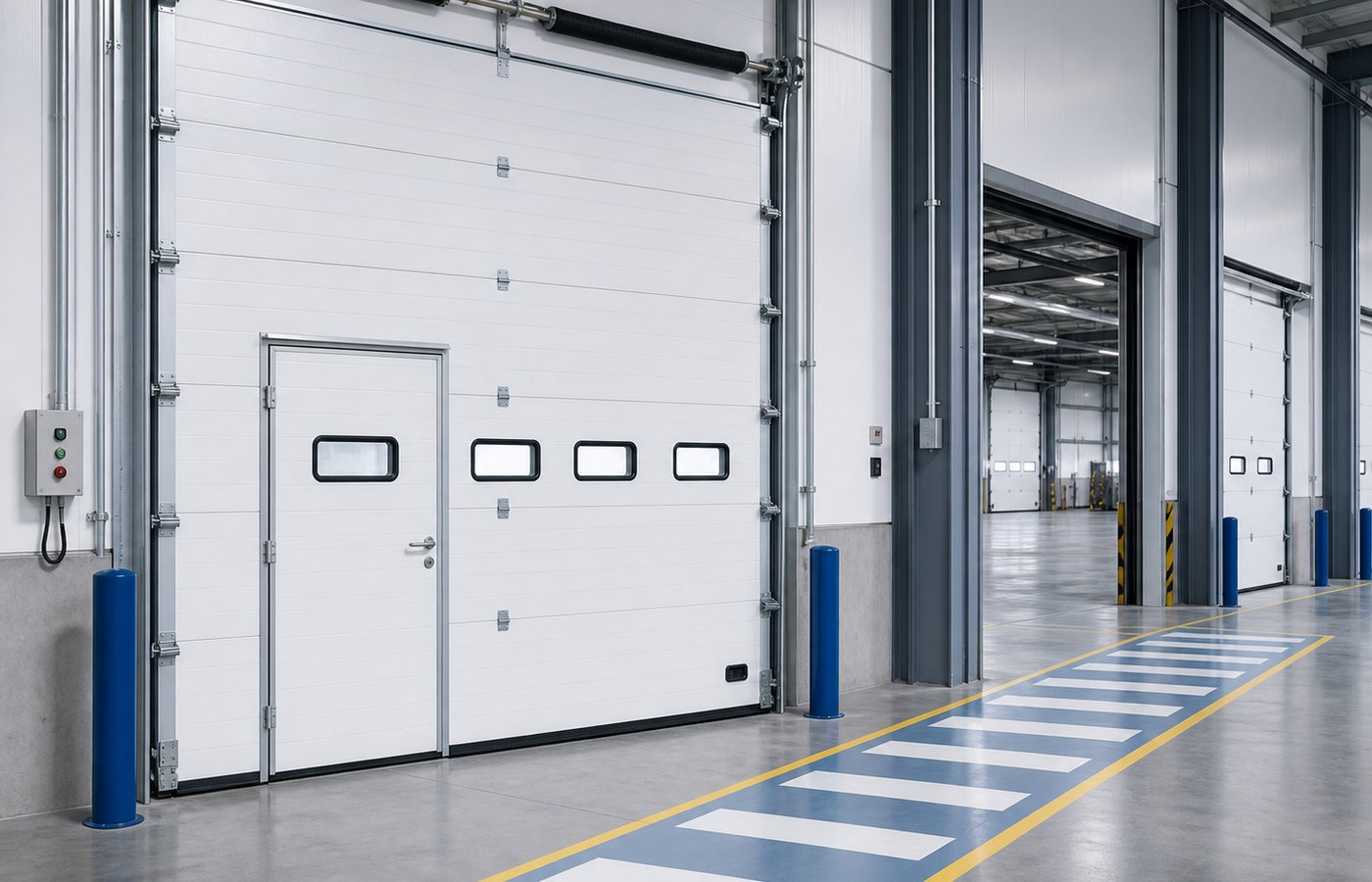

应用
Designed for industrial buildings where people and goods share the same access zone.
工厂仓库
Separate personnel entry from occasional vehicle access in storage and dispatch zones.
Commercial facilities
Use one opening for vehicles, maintenance teams, and controlled pedestrian access.
生产车间：
Support employee access without disturbing larger material movement through the door.
Logistics service bays
Give staff a quick access route near bays, service rooms, or maintenance areas.
Planning a factory, warehouse, or service-bay access project?
Tell SEPPES your application scenario and we will suggest the door panel, wicket door position, windows, and safety configuration.
Get Project Recommendation
买家常见问题解答
Common questions before ordering an industrial sectional door with wicket door.
What is a sectional garage door with pedestrian door?
It is a sectional overhead door with a smaller pedestrian wicket door built into the main door panel. It allows people to enter and exit without opening the full industrial sectional door.
Is a sectional overhead door with pass door suitable for industrial buildings?
Yes. It is useful for warehouses, workshops, maintenance bays, and commercial buildings where pedestrian access is frequent but full vehicle access is only needed at certain times.
What affects the price of an overhead garage door with pedestrian door?
Price depends on clear opening size, panel thickness, wicket door size and position, window quantity, motor system, interlock device, safety accessories, and installation conditions.
Can the wicket door include windows?
Yes. A sectional garage door with pedestrian door and windows can improve visual awareness near pedestrian routes, forklifts, and maintenance zones. Window quantity and placement should be confirmed by project drawing, especially when comparing sectional garage doors with wicket door options for multi-bay buildings.
What information is needed for a quote?
Please provide opening width and height, indoor photos, available headroom and side room, preferred wicket door position, window requirements, operation frequency, and whether the door needs motorized control.
For broader workplace access and safety planning, buyers can review OSHA warehousing hazards and solutions as an external reference.
Project Quote
Send your opening size and pedestrian access requirements.
SEPPES can help review clear opening, wicket door position, panel configuration, window layout, threshold design, motor control, and safety interlock requirements for your industrial sectional door with wicket door. If you need a sectional garage door with pedestrian door manufacturer or sectional garage door with pedestrian door supplier for a factory or warehouse project, send drawings and site photos for a practical configuration review.
