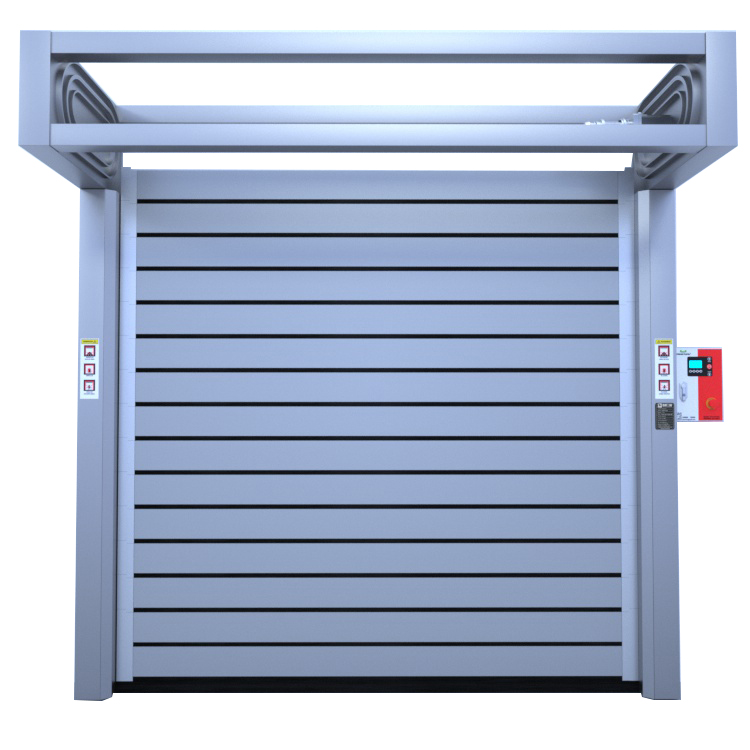

高速螺旋门

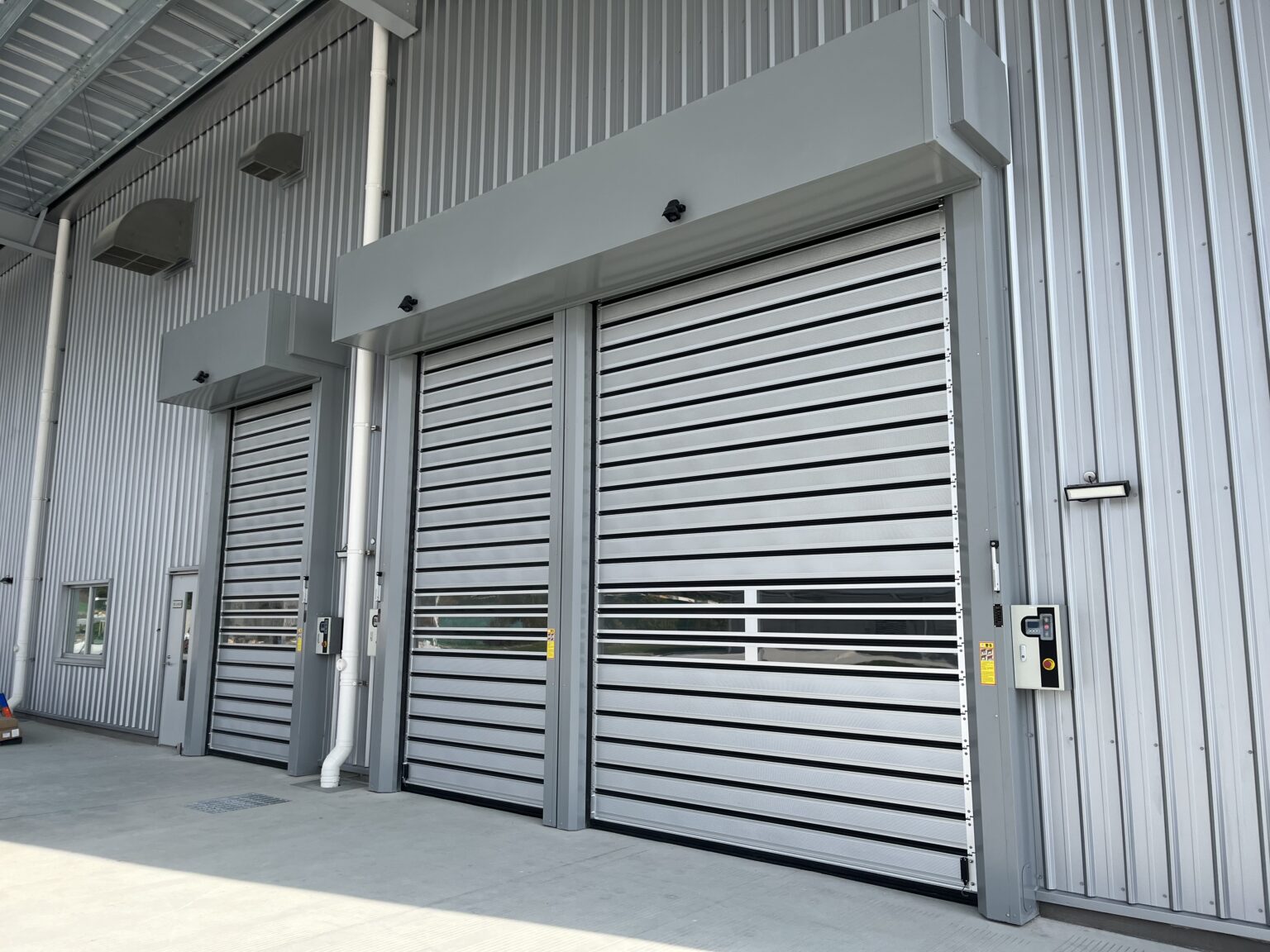

SEPPES Door delivers a cutting-edge spiral door that excels in high-speed industrial and commercial environments, merging smart engineering with outstanding functionality. Built with rugged aluminum, the door combines strength and a refined profile, protecting assets while enhancing facility aesthetics.
Engineered for the harshest applications, the door provides superior thermal insulation and energy-saving tightness, cutting consumption while dampening noise and stopping air infiltration. Integrated safety devices shield personnel, machinery, and merchandise, creating a secure passage. Rapid cyclical movement—combined with a space-saving spiral design—minimizes open time, limits operator delays, and drives productivity, cementing the door as a key asset for streamlining workflows.
SEPPES：工业卷帘门的主要制造商
SEPPES Door 是一家领先的制造商，其产品包括 螺旋高架门我们致力于为工业和商业应用提供先进的解决方案。在尖端技术的启发下，我们的门产品具有无与伦比的效率、安全性和耐用性，能够满足各行各业的需求。
创新技术
1.隔热
2.涡轮结构
3.抗风能力强
4.快速打开和关闭
5.伺服驱动器
6.红外线保护
数据表
特点 | 适用于频繁开关的室外门，具有速度快、抗风能力强、隔热性能好等功能 | |||
门帘材料 | 0.7mm aluminum alloy door panel, filled with polyurethane foam for heat preservation inside, and the thickness of the door panel is 40（50、60）mm | |||
门框材料 | 2.5 毫米镀锌钢漆框架 | |||
控制系统 | 标准微电脑控制系统 （打开、关闭、停止按钮） （开关人机英文界面） （液晶显示，故障代码提示 | |||
安全系统 | 光电保护（标准配置）\ 无线安全底边保护（标准配置）\ 光栅保护（可选配置） | |||
驱动系统 | 伺服电机、减速机 | |||
电机位置 | 默认权利 | |||
抗风等级 | 11 级风（国家标准） | |||
最大速度 | 2.0 米/秒 | |||
紧急开门 | 支持 | |||
Spiral Door Detail Display
1. Door Panel: Constructed from two layers of 0.7mm aluminum alloy, the panel contains a core of high-density polyurethane foam, culminating in a final thickness of 40mm. At 250 kg/m³ volume density, this assembly incorporates engineered thermal breaks to minimize heat conduction.
2. Sealing System: An advanced four-seal architecture establishes an impermeable barrier, restricting outside humidity and air exchange. Quantitatively, the leakage rate is limited to 8.68 m³ per hour per square meter at 1,000 Pa differential pressure, guaranteeing environmental separation.
3. Balance System: An integrated counterweight system, concealed within the four-seal structure, compensates dynamic loads without compromising airtight integrity. Testing shows similar leakage figures, confirming equilibrium adjustments occur without creating infiltration avenues.
4. Safety Assurance: Recessed dual-security latches, seated four millimeters beyond the panel plane, provide progressive locking. Should a pressure differential exceed two times the nominal rating, detachment-triggered safety pins deploy, maintaining the four-seal performance and retaining chamber integrity.
Lifting Methods for Hard Fast Doors Summary
Choose The Lifting Method According To The Actual Situation To Save The Workshop Space

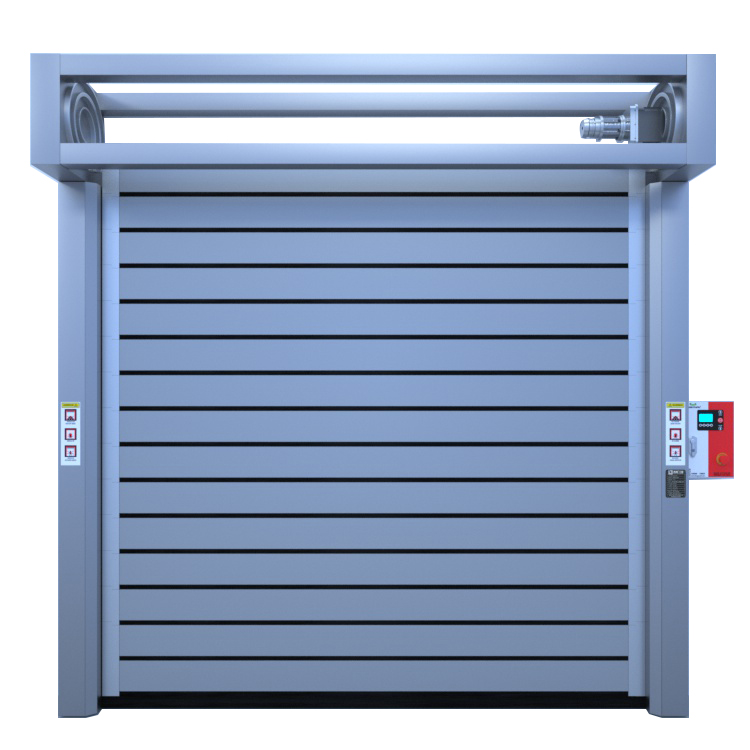

Standard Circular Spiral Structure
Uses circular spiral tracks for smooth, contact-free panel movement. Minimizes wear, reduces noise, and enables high-speed operation up to 60"/sec.
Elliptic Spiral Structure
Features elliptical guidance for space optimization. Provides faster opening speeds while maintaining structural integrity in limited headroom applications.

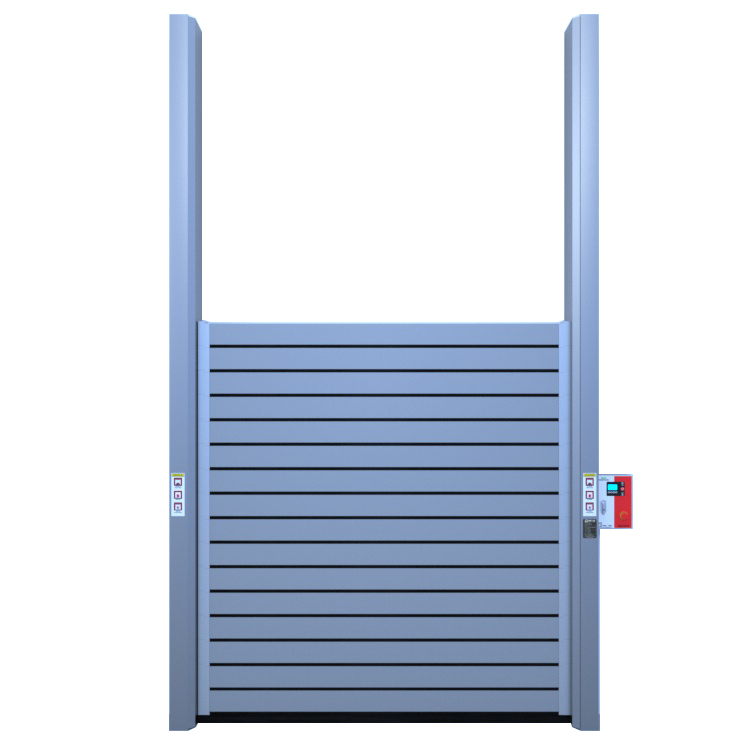

Vertical Structure
Traditional straight-up lifting mechanism. Simple design with reliable operation, suitable for standard applications where space is not a constraint.

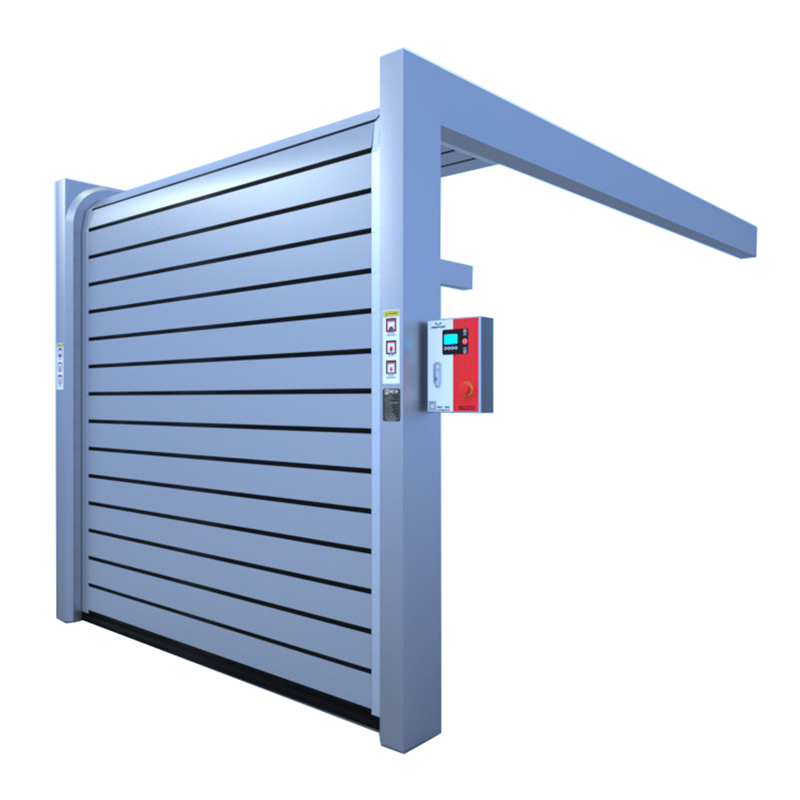

L-turn Type Structure
Uses L-shaped track configuration for corner installations. Perfect for tight spaces where horizontal movement is required before vertical lifting.

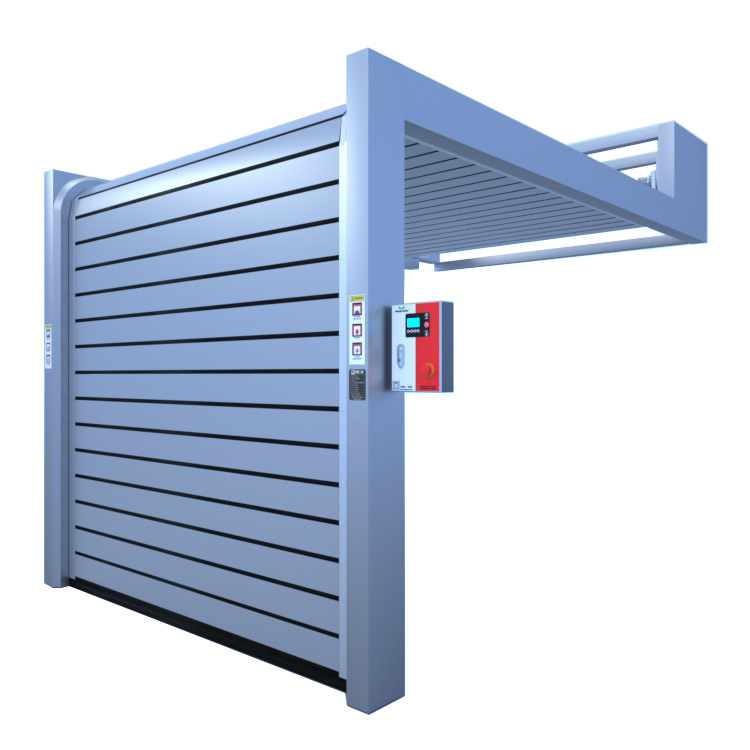

S-turn Type Structure
Incorporates S-shaped track curves for compact installation. Ideal for low-headroom situations while maintaining efficient door panel guidance.
Spiral Door Installation instructions
B-门洞的宽度（从门洞左边缘到右边缘的距离）
h-门洞上方（门洞顶部到天花板的距离）一般预留 900 毫米
b1/ b2 是至少 350 毫米的左右横向距离（从门洞相应边缘到障碍物的距离）
L 是房间的深度。
测量 h、b1、b2 和 L 时，取最小值作为最终尺寸。
立即获取快速报价
Applications of High Speed Spiral Door
High-speed spiral doors deliver fast, dependable entry that simplifies workflows in warehouses, manufacturing, and food processing—just a few examples. Thanks to strong materials, rapid open-close cycles, and intuitive automation, these doors adapt to the demanding environments of today’s buildings. They stand out especially within the application zones listed below.
有关高速门的资源
Leading High Speed Roll Up Door Manufacturers in China - SEPPES
我们公司 SEPPES 是一个专业 Industrial Doors manufacturer.产品 出口到 70 个国家.我们的产品拥有多项技术专利和欧盟 CE 认证，并在以下领域拥有丰富的经验 快速卷帘门快速门、高速卷帘门、高速螺旋门、高速堆积门，以及 PVC 卷帘门.
为什么选择我们
High-speed spiral entry systems set a fresh benchmark for efficiency in contemporary buildings. Purpose-built for versatility and dependable performance, each unit combines heavy-duty materials, exceptionally quick cycle times, and intelligent controls that guarantee flawless interface even in harsh operational conditions.
成本效益
Data Parameter: Unit pricing spans $1,390 to $1,690, influenced by quantity and configuration choices. SEPPES delivers market-aligned pricing without compromising the quality hallmark, positioning itself as a compelling source for substantial purchase orders.
Advanced Technology
Rapid Kick-Cycle: starts at 2.0 m/s; braced for wind loads of 32 m/s (Level 12). Innovations include servo-driven leafs, invisible infrared safety light grids, and self-correcting derailment units for laser-precise operation.
Global Standards Compliance
Mark Parameters: CE, SGS, ISO9001—accredited. SEPPES fully complies with all relevant global safety and performance criteria, delivering reliable products that cultivate confidence and foster long-lasting partnerships with customers.
Diverse Applications
Data parameter: Tailored for logistics, manufacturing, automotive, and temperature-controlled storage. SEPPES spiral doors excel in environments where high traffic and thermal precision are crucial.
您可能喜欢的其他类型的高速门
我们拥有真实权威的证书。
SEPPES International Trademark Certification
Since our founding, SEPPES has secured trademark registrations across several countries. Each new certification symbolizes growing worldwide recognition of our brand, which, in turn, reinforces our competitive position and expands our influence in international markets.

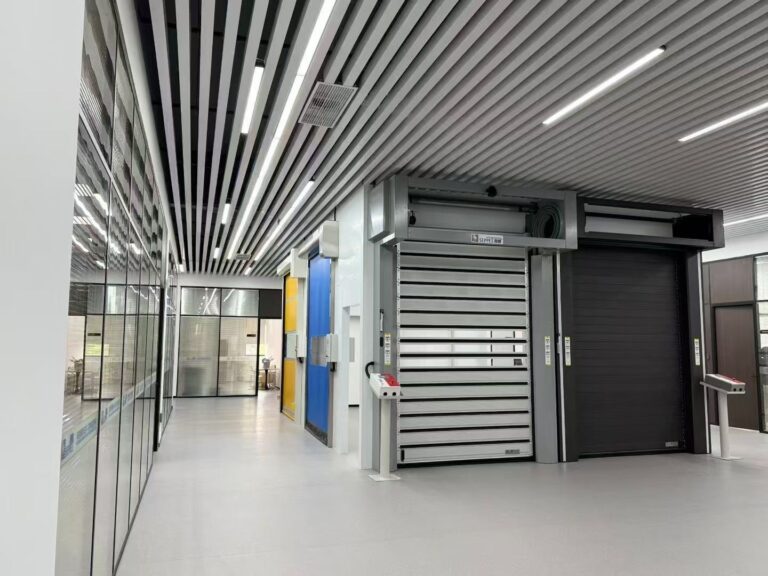

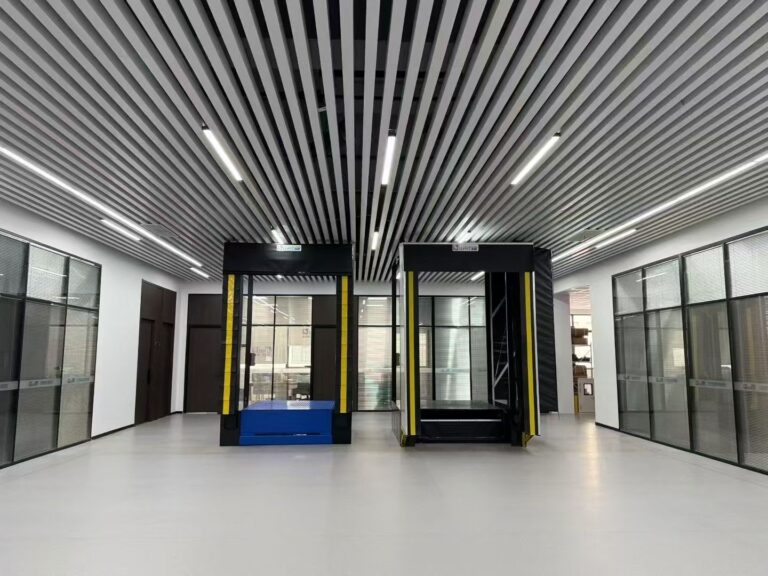

欢迎访问 SEPPES 的工业门工厂
常见问题
Q What is a high-speed spiral door?
A:A rapid-motion spiral door operates on advanced engineering to achieve superior openness and closure cycles. Its patented spiral rail architecture guides slatted panels to rotate skyward without any contact between surfaces, minimizing friction and wear while promoting a clean, reliable seal against ambient elements.
Q: What are the benefits of using a high-speed spiral door?
A:Speed: Fast slide-up and slide-down movements mean one less thing slowing down productivity clocks in the plant.
Energy efficiency: Each half-second saved on air transfer leads to less strain on chillers and strip curtains—numbers the accountant will love at the end of the month.
Durability: Our continuous-spooled rail encourages the door to curve in a way that dodges the usual impact pings and cusps; less chance of frame chips nudging up loose parts replacement years ahead.
Security: Each section consists of impact-resistant armor and the inner core is blasted-bonded. That’s the sort of thing that encourages trespassers to look for another shift.
Noise reduction: Sealing micro-bump straps on the bottom put a hush on pallet banging at the next dock—coworkers have called that a godsend less than mid-shift assets repayment.
Q:Where are high-speed spiral doors typically used?
A:These doors are commonly used in:
- 仓库
- 生产设施
- 配送中心
- Automotive showrooms
- 冷藏设施
- 洁净室
Q:What materials are high-speed spiral doors made of?
A:High-speed spiral doors are commonly manufactured from the following materials:
Aluminum: Known for being lightweight yet sturdy, aluminum won’t rust and can easily resist the elements.
Steel: Chosen for its robust durability, steel adds an extra layer of strength and security against forced entry.
Polycarbonate panels: These transparent sections allow for ample visibility from both sides while permitting daylight to filter through, keeping the entryway bright and safe.
Q:How fast do high-speed spiral doors operate?
A:The speed varies by model, but most high-speed spiral doors can open at speeds of 1.5 to 2 meters per second, depending on the size and application.
Q: Are high-speed spiral doors energy-efficient?
A:That’s exactly right; their design restricts fresh-air flow, locking in treated air, which keeps the space at a steady temperature. By doing so, they cut down on the energy used to heat or cool the room, so they’re a great fit when the space has to be carefully temperature-managed.
Q:What safety features do high-speed spiral doors have?
A:Photoelectric Sensors play a crucial role by scanning the doorway area for any presence—be it a person, a shopping cart, or a bag left behind—ensuring the door halts before any potential collision.
An Emergency Stop Mechanism, easily accessible by staff or visible emergency buttons, halts the door’s movement in seconds, providing an additional layer of safety in unforeseen circumstances.
Soft Edge Technology is integrated into the door’s moving edge. If the door lowers and encounters an object, it automatically senses the pressure and reverses, transforming a rigid barrier into a gentle safeguard against bumps and bruises.
Q:How are high-speed spiral doors maintained?
A:Routine upkeep consists of:
Sweeping debris from the tracks and wiping down glass panels.
Applying lubricant to the rollers, hinges, and any pivot points.
Testing the photo eyes and emergency shut-offs to confirm responsiveness.
Examining the motor, belt, and drive gears for any signs of fraying or play.
Q:Can high-speed spiral doors be customized?
A:Absolutely, you can tailor these aspects to suit your needs:
Dimension
Hue
Substance
R-value
Transparent panels to enhance light and sight
Q:What is the lifespan of a high-speed spiral door?
A:With proper maintenance, high-speed spiral doors can last 10-15 years or more, depending on usage and environmental conditions.
