Industrial sectional door sizes can be customized according to the width, height, headroom, and installation conditions of your building.For warehouses, factories, ورش العمل, مراكز الخدمات اللوجستيةو loading areas.
There is no single standard size for every project. The right industrial sectional door size depends not only on the opening width and height, but also on the available installation space and operating requirements.
When specifying a custom sectional door, several factors should be considered:
- Opening width and height
- Headroom above the opening
- Side room available for tracks

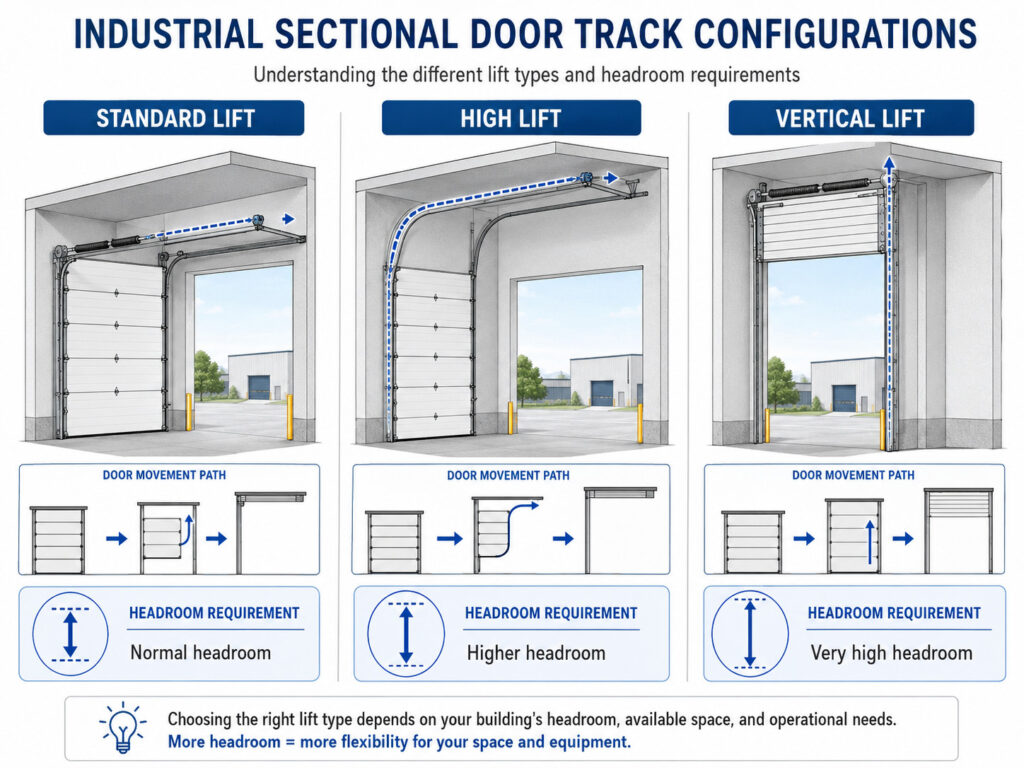

- 标准提升、高提升或垂直提升
- Wind load requirements
- Daily operating frequency
- Motor and track configuration
For example, a warehouse with high ceilings may use a high lift or vertical lift sectional door to keep the tracks close to the roof and maximize usable space.
Can Sectional Doors Be Custom Made?
Yes. Custom sectional doors can be manufactured according to the actual dimensions of the building opening.
Instead of selecting a fixed standard door size, industrial projects normally provide the required:
Width (W) × Height (H)
The manufacturer can then recommend the appropriate panel configuration, track system, lift type, motor, and safety devices.
For unusually large openings, additional factors such as wind resistance, panel reinforcement, and structural conditions should also be evaluated.
What Measurements Are Needed?
The right industrial sectional door sizes depend on the opening dimensions, available headroom, side room, wind load, and track configuration.
Before requesting a quotation, it is recommended to provide:
| Measurement | الوصف |
|---|---|
| Opening Width | Clear width of the doorway |
| Opening Height | Clear height of the doorway |
| Headroom | Space above the opening |
| Left Side Room | Space on the left side |
| Right Side Room | Space on the right side |
Photos, drawings, or videos of the installation area can also help the manufacturer recommend the correct sectional door configuration.
Before confirming industrial sectional door sizes, provide the opening width, height, headroom, and side room to your supplier.
الأسئلة الشائعة
What is the maximum size of an industrial sectional door?
The maximum size depends on the door structure, lift system, wind load, panel configuration, and site conditions. Large openings usually require additional engineering and reinforcement.
Can a sectional door be installed with limited headroom?
Yes. Different track configurations can be selected according to the available ceiling space.
Can industrial sectional doors be customized?
Yes. Industrial sectional doors can be customized according to the required opening width, height, installation space, and operating requirements.
اختيار باب قطاعي صناعي size starts with accurate opening measurements.
If you are planning a warehouse, factory, or logistics project, provide the door width, height, headroom, and side room to your supplier. This allows the manufacturer to recommend the most suitable door size, lift type, and track configuration for your building.
