高速スパイラルドア

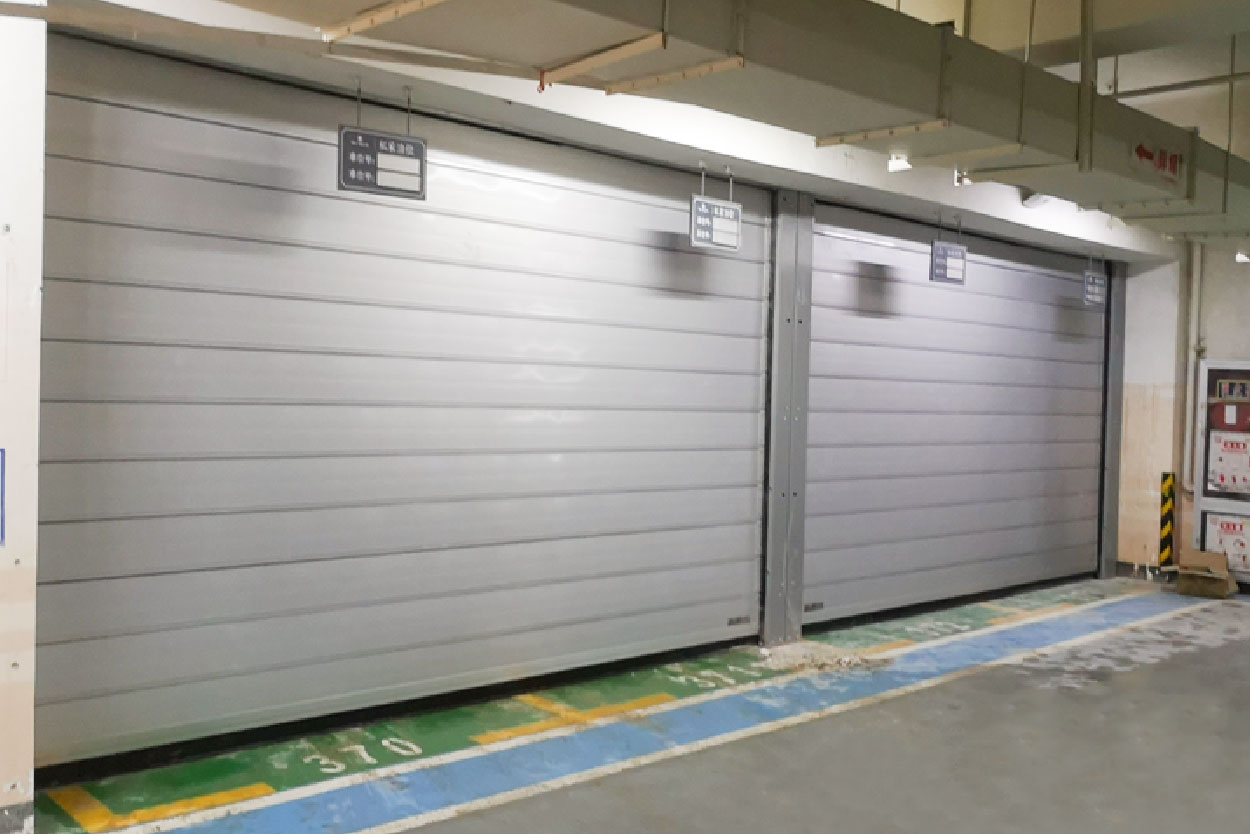

SEPPES Door delivers a cutting-edge spiral door that excels in high-speed industrial and commercial environments, merging smart engineering with outstanding functionality. Built with rugged aluminum, the door combines strength and a refined profile, protecting assets while enhancing facility aesthetics.
Engineered for the harshest applications, the door provides superior thermal insulation and energy-saving tightness, cutting consumption while dampening noise and stopping air infiltration. Integrated safety devices shield personnel, machinery, and merchandise, creating a secure passage. Rapid cyclical movement—combined with a space-saving spiral design—minimizes open time, limits operator delays, and drives productivity, cementing the door as a key asset for streamlining workflows.
SEPPES: 工業用ローラーシャッタードアのプレミアメーカー
SEPPES Doorは、以下の製品のトップメーカーです。 スパイラルオーバーヘッドドア工業用および商業用アプリケーションに高度なソリューションを提供することに専念しています。最先端技術にインスパイアされた当社のドアは、比類のない効率性、安全性、耐久性を提供し、様々な業界の要求を満たします。
革新的技術
1.断熱
2.ターボ構造
3.強い耐風性
4.素早い開閉
5.サーボドライブ
6.赤外線保護
データシート
特徴 | 開閉頻度の高い屋外ドアに適し、高速性、耐風性、断熱性などの機能を持つ。 | |||
ドアカーテンの素材 | 0.7mm aluminum alloy door panel, filled with polyurethane foam for heat preservation inside, and the thickness of the door panel is 40（50、60）mm | |||
ドアフレーム材質 | 2.5mm亜鉛メッキスチールペイントフレーム | |||
制御システム | 標準的なマイクロコンピューター制御システム開く、閉まる、停止ボタン男機械英語インターフェイスを転換して下さい LCD 表示、欠陥コードのプロンプトを表示して下さい | |||
セキュリティシステム | 光電保護(標準構成)⑬無線安全下端保護(標準)⑭グレーチング保護(オプション) | |||
駆動方式 | サーボモータ、減速機 | |||
モーター位置 | デフォルトの権利 | |||
耐風レベル | 11の風（国内基準） | |||
最高速度 | 2.0m/s | |||
緊急時のドア開放 | サポート | |||
Spiral Door Detail Display
1. Door Panel: Constructed from two layers of 0.7mm aluminum alloy, the panel contains a core of high-density polyurethane foam, culminating in a final thickness of 40mm. At 250 kg/m³ volume density, this assembly incorporates engineered thermal breaks to minimize heat conduction.
2. Sealing System: An advanced four-seal architecture establishes an impermeable barrier, restricting outside humidity and air exchange. Quantitatively, the leakage rate is limited to 8.68 m³ per hour per square meter at 1,000 Pa differential pressure, guaranteeing environmental separation.
3. Balance System: An integrated counterweight system, concealed within the four-seal structure, compensates dynamic loads without compromising airtight integrity. Testing shows similar leakage figures, confirming equilibrium adjustments occur without creating infiltration avenues.
4. Safety Assurance: Recessed dual-security latches, seated four millimeters beyond the panel plane, provide progressive locking. Should a pressure differential exceed two times the nominal rating, detachment-triggered safety pins deploy, maintaining the four-seal performance and retaining chamber integrity.
Lifting Methods for Hard Fast Doors Summary
Choose The Lifting Method According To The Actual Situation To Save The Workshop Space
Standard Circular Spiral Structure
Uses circular spiral tracks for smooth, contact-free panel movement. Minimizes wear, reduces noise, and enables high-speed operation up to 60"/sec.
Elliptic Spiral Structure
Features elliptical guidance for space optimization. Provides faster opening speeds while maintaining structural integrity in limited headroom applications.
Vertical Structure
Traditional straight-up lifting mechanism. Simple design with reliable operation, suitable for standard applications where space is not a constraint.
L-turn Type Structure
Uses L-shaped track configuration for corner installations. Perfect for tight spaces where horizontal movement is required before vertical lifting.
S-turn Type Structure
Incorporates S-shaped track curves for compact installation. Ideal for low-headroom situations while maintaining efficient door panel guidance.
Spiral Door Installation instructions
B-ドア開口部の幅（ドア開口部の左端から右端までの距離）
h-出入り口の上（出入り口の上端から天井までの距離）は、通常900mmとする。
b1/b2は、少なくとも350mmの左右の横方向の距離（ドア開口部の対応する端から障害物までの距離）。
Lは部屋の奥行き。
h、b1、b2、Lを測定する場合は、最小値を最終的なサイズとする。
クイック見積り
Applications of High Speed Spiral Door
High-speed spiral doors deliver fast, dependable entry that simplifies workflows in warehouses, manufacturing, and food processing—just a few examples. Thanks to strong materials, rapid open-close cycles, and intuitive automation, these doors adapt to the demanding environments of today’s buildings. They stand out especially within the application zones listed below.
Resources on high speed doors
選ばれる理由
High-speed spiral entry systems set a fresh benchmark for efficiency in contemporary buildings. Purpose-built for versatility and dependable performance, each unit combines heavy-duty materials, exceptionally quick cycle times, and intelligent controls that guarantee flawless interface even in harsh operational conditions.
費用対効果
Data Parameter: Unit pricing spans $1,390 to $1,690, influenced by quantity and configuration choices. SEPPES delivers market-aligned pricing without compromising the quality hallmark, positioning itself as a compelling source for substantial purchase orders.
先端技術
Rapid Kick-Cycle: starts at 2.0 m/s; braced for wind loads of 32 m/s (Level 12). Innovations include servo-driven leafs, invisible infrared safety light grids, and self-correcting derailment units for laser-precise operation.
Global Standards Compliance
Mark Parameters: CE, SGS, ISO9001—accredited. SEPPES fully complies with all relevant global safety and performance criteria, delivering reliable products that cultivate confidence and foster long-lasting partnerships with customers.
Diverse Applications
Data parameter: Tailored for logistics, manufacturing, automotive, and temperature-controlled storage. SEPPES spiral doors excel in environments where high traffic and thermal precision are crucial.
お気に召すかもしれない他の種類の高速ドア
素晴らしいクライアント
私たちは65以上の国と地域に輸出しています。私たちの強力なサービスインターネットとインストールチームは、私たちはヨーロッパ、中東から来る顧客との関係を構築するのに役立ちます、 南米および東南アジア65
私たちは本物で権威のある証明書を持っています。
SEPPES International Trademark Certification
Since our founding, SEPPES has secured trademark registrations across several countries. Each new certification symbolizes growing worldwide recognition of our brand, which, in turn, reinforces our competitive position and expands our influence in international markets.
Welcome to SEPPES's Indsutrial Doors Factories
Frequently Ask Questions
Q What is a high-speed spiral door?
A:A rapid-motion spiral door operates on advanced engineering to achieve superior openness and closure cycles. Its patented spiral rail architecture guides slatted panels to rotate skyward without any contact between surfaces, minimizing friction and wear while promoting a clean, reliable seal against ambient elements.
Q: What are the benefits of using a high-speed spiral door?
A:Speed: Fast slide-up and slide-down movements mean one less thing slowing down productivity clocks in the plant.
Energy efficiency: Each half-second saved on air transfer leads to less strain on chillers and strip curtains—numbers the accountant will love at the end of the month.
Durability: Our continuous-spooled rail encourages the door to curve in a way that dodges the usual impact pings and cusps; less chance of frame chips nudging up loose parts replacement years ahead.
Security: Each section consists of impact-resistant armor and the inner core is blasted-bonded. That’s the sort of thing that encourages trespassers to look for another shift.
Noise reduction: Sealing micro-bump straps on the bottom put a hush on pallet banging at the next dock—coworkers have called that a godsend less than mid-shift assets repayment.
Q:Where are high-speed spiral doors typically used?
A:These doors are commonly used in:
- 倉庫
- Manufacturing facilities
- Distribution centers
- Automotive showrooms
- 冷蔵施設
- クリーンルーム
Q:What materials are high-speed spiral doors made of?
A:High-speed spiral doors are commonly manufactured from the following materials:
Aluminum: Known for being lightweight yet sturdy, aluminum won’t rust and can easily resist the elements.
Steel: Chosen for its robust durability, steel adds an extra layer of strength and security against forced entry.
Polycarbonate panels: These transparent sections allow for ample visibility from both sides while permitting daylight to filter through, keeping the entryway bright and safe.
Q:How fast do high-speed spiral doors operate?
A:The speed varies by model, but most high-speed spiral doors can open at speeds of 1.5 to 2 meters per second, depending on the size and application.
Q: Are high-speed spiral doors energy-efficient?
A:That’s exactly right; their design restricts fresh-air flow, locking in treated air, which keeps the space at a steady temperature. By doing so, they cut down on the energy used to heat or cool the room, so they’re a great fit when the space has to be carefully temperature-managed.
Q:What safety features do high-speed spiral doors have?
A:Photoelectric Sensors play a crucial role by scanning the doorway area for any presence—be it a person, a shopping cart, or a bag left behind—ensuring the door halts before any potential collision.
An Emergency Stop Mechanism, easily accessible by staff or visible emergency buttons, halts the door’s movement in seconds, providing an additional layer of safety in unforeseen circumstances.
Soft Edge Technology is integrated into the door’s moving edge. If the door lowers and encounters an object, it automatically senses the pressure and reverses, transforming a rigid barrier into a gentle safeguard against bumps and bruises.
Q:How are high-speed spiral doors maintained?
A:Routine upkeep consists of:
Sweeping debris from the tracks and wiping down glass panels.
Applying lubricant to the rollers, hinges, and any pivot points.
Testing the photo eyes and emergency shut-offs to confirm responsiveness.
Examining the motor, belt, and drive gears for any signs of fraying or play.
Q:Can high-speed spiral doors be customized?
A:Absolutely, you can tailor these aspects to suit your needs:
寸法
Hue
Substance
R-value
Transparent panels to enhance light and sight
Q:What is the lifespan of a high-speed spiral door?
A:With proper maintenance, high-speed spiral doors can last 10-15 years or more, depending on usage and environmental conditions.
